246-7 Dainichi, Yotsukaido-shi,Chiba-ken 284-0001 Japan. TEL:81+43-423-8741FAX:81+43-423-8684
Stainless Flexible Protection Tube & Connectors for Optic Fiber and other related materials and accsessories.
Interlocked Tube	P.09
Features -Stay bent and maintain preferble radius. -Water proof with a cotton thread packing inside the material of the tube. -Non elastic -Can be painted, plated. PVC sheathing could be applied over the tube. -Some sizes are not in stock. Delivery time will be scheduled after receiving order. Apprications -Optical Fiber Protection -Light guide -Microphone stands -Exhaust pipes -Water pipe for gas water heater -Delivery pipes for powdery material. -Protection for underground pipeline -Water pipe for water purifire -Flexible faucets	Light guide
Materials -Stainless steel Note -IS-4N,ISP-4N will be made without cotton packing. -To order non packing tube, please indicate NP in model number, after IS or ISP. (EXAMPLE: ISNP-9N) -Standard length of the tube is 10 - 16m/pc -Please contact us for terminal fittings and special sizes.
Specifications and sizes(mm) Model ID+/-0.2 OD+/-0.2 Bending radius+/-10 STD. Length (m) Stock IS-4N 4.0 6.1 35 100m Y IS-5N 5.0 7.2 50 100 Y IS-6N 6.0 8.4 55 100 S IS-7N 7.0 9.5 55 100 S IS-8N 8.0 10.5 55 100 Y IS-9N 9.9 12.7 60 50 Y IS-11N 11 13.8 70+/-20 50 - IS-13N 12.5 15.3+/-0.3 70 50 Y IS-15N 15.8+/-0.3 18.6+/-0.3 70 50 Y IS-19N 19.1+/-0.5 22.1+/-0.5 90+/-20 50 S IS-25N 25.4+/-0.5 28.9+/-0.5 110+/-20 30 S IS-31N 31.8+/-0.5 37.5+/-0.5 350+/-35 30 S IS-35N 35.0+/-0.5 40.69+/-0.5 140+/-20 30 - IS-39N 38.1+/-0.5 43.6+/-0.5 350+/-35 30 S IS-40N 40+/-0.5 46.3+/-0.5 180+/-20 20 - IS-44.5N 44.5+/-0.5 48+/-0.5 200+/-30 20 - IS-51N 50.8+/-0.5 56.3+/-0.5 400+/-40 10 S IS-63N 63.5+/-0.8 69.0+/-0.8 450+/-45 10 S IS-75N 76.4+/-0.8 82.0+/-0.8 600+/-60 10 S IS-78N 78.0+/-0.8 85.5+/-0.5 450+/-50 10 - IS-90N 89.0+/-0.8 95.0+/-0.8 700+/-70 10 S IS-92N 92+/-1.0 99.5+/-0.5 650+/-70 10 - IS-100N 101.0+/-1.0 107.0+/-1.0 800+/-100 10 S IS-101.6N 101.6+/-1.0 109.0+/-0.5 750+/-80 10 - P.V.C covered Model OD Length ISP-4N 7.2 100m ISP-5N 8.4 100 ISP-6N 9.6 100 ISP-7N 10.7 100 ISP-8N 12.0 100 ISP-9N 14.0 50 ISP-11N 13.8 50 ISP-13N 17.0 50 ISP-15N 21.0+/-0.4 50 ISP-19N 24.5+/-0.5 50 ISP-25N 32.0+/-0.5 30 ISP-31N 41.8+/-0.5 30 ISP-35N 42.2+/-0.5 30 ISP-39N 48.0+/-0.5 30 Click here to get all color HAGITEC catalog in PDF*Other window will be open for the catalog*

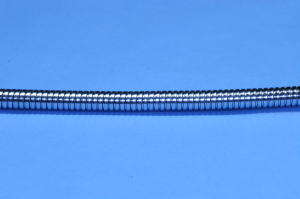

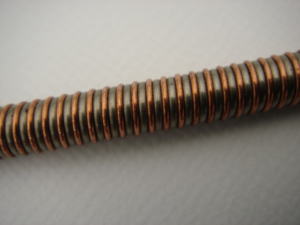

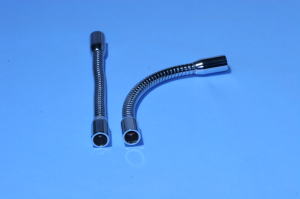

Stand Tube	P.09
Features -Combination of round and triangle rods. -Can be bent smoothly -Holds the bending condition -Working load can be enhanced by inserting a sub strength material. -Metal plating, PVC sheathing and painting on the tube is available and it will improve outside durability. Apprications -Light guide -Microphone stands -Light stand -Automotive accessories Materials -Hard and soft steel wire rod. Surface finish -Plating(Chrome, Black chrome, Nickel, Zincing) -Painting(Splay) Note -Available to produce up to CD-25, outer diameter is approx. 25mm Fittings are attachable to both end. To maintain strength, copper thread would be insert inside the tube.	Click here to get all color HAGITEC catalog in PDF*Other window will be open for the catalog*
Specifications and sizes(mm) Model ID+/-0.2 OD+/-0.2 Bending radius Maximum length with plated(mm) CD-5 1.5 5.0 Please inquire. 950 CD-6 2.8 6.0 CD-7 3.5 7.0 CD-9 4.5 9.0 CD-10 5.0 10.0 CD-11 5.5 11.0 CD-13 6.0 13.0 CD-15 8.0 15.0 CD-20 10.0 20.0 CD-22 12.0 22.0

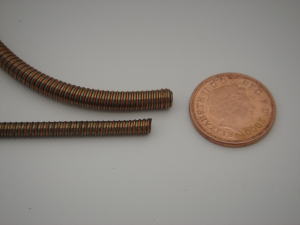

Micro-Stand Tube	P.09
Features -Small outer diameter. -Light weight product -Bends smoothly -Holds the bending angle. -Sheathe in the heat shrink tube to make the tube airtight and for the clean exterior. Apprications -Microphone holder of headset -Light guide in LED and other lightweight appliance. -Fixed tube for regulator of the Oxygen inhalator. Materials -Stainless Steel and copper wire.
Specifications and sizes(mm) Model ID+/-0.2 OD+/-0.2 Bending radius length MCD-3.6 1.3 3.6 This product is not in stok. Please inquire for detail. MCD-4.0 1.5 4.0 MCD-4.8 2.4 4.8 MCD-5.0 2.6 5.0 MCD-5.3 3.0 5.3
