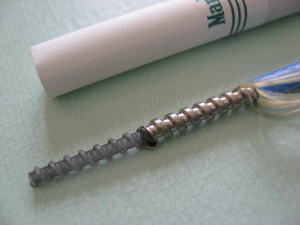

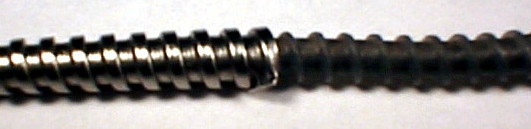

NEW ! 3 - Layer Stainless Flexible Conduit

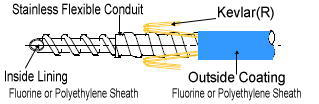

3-Layer Stainless Flexible Conduit is consist of 3 layers of tubes.
Stainless casing tube (Flexible Conduit) lined by fluorine or polyethylene sheath inside. And outside of the stainless tube is also coated by fluorine or polyethylene.
Inner tube(sheath) is clinging to the surface of the stainless tube so that it prevent the stainless conduit from stretching and/or shrinking, and misting inside.
These unique characteristics of the 3-Layer Stainless Flexible Conduit is ideal for wiring optical fibers in automobiles, airplanes, Sewage and in the severe environments.

*Kevlar(R) will be applied by request.
*Contact with us for detail.
