Heavy Duty PICOFLEC detail 45
Complete solutions to eliminate the closest possible attention to side presure, tensile and bending strength.
FC PICOFLEC
Conforming JIS-F01　
 FC Connector Housing
 SC PICOFLEC
Conforming to JIS F04
 SC Connector Housing
DSC PICOFLEC　
Conforming to JIS F04 SC duplex type
 DSC Connector Housing
 ST-PICOFLEC
Conforming to JIS F09
 ST Connector Housing
FDDI PICOFLEC
(Any setteing of guide keys A,B,M, and free are available)
 FDDI Connector Housing
 LOCP201(200)
Conforming to JIS-F07
Compatible bilateral Toslink&Sumilink
 LOCP200 Connector Housing
DL PICOFLEC
Conforming to JIS F08
Sequencer controller
 DL Connector Housing
 Armored Optic Fiber Patch Cord
Table 1:Comparison of characteristics 1-Core PICOFLEC and Conventional Optical Cord Table 2:Connector Polishing Specifications(For PC and SC connectors)
. PICOFLEC Conventional Optical Cord
Permissible Tension （Kgf) 15 20(Containing Kevler）
Connecto（X,Y,Z and axis）（Kgf) 10 X axis 3Kgf (reference value)
Permissible side Pressure (Kgf/mm) 250/50 No data
Permissible Bending Radius
(mm)		 40 45
Cable Outer DM(mm) 3.5(KSP-1.8N) 2.8
Cable Weight(Kg/Km) approx.25 7
Connector Type Optical Fiber Polishing Insertion Loss(dB) Return Loss(dB)
FC and SC SM(9.5/125) Flat 1.0 or less -
PC 0.5 or less 30 or more
SPC 0.5 or less 40 or more
AdPC 0.5 or less 40 or more
APC 0.5 or less 60 or more
GI(50/125) Flat 0.6 or less -
PC 0.3 or less 25 or more
SPC 0.3 or less 30 or more
Connector Polishing Specification Table
Optical Fiber SM10/125 GI 50/125,GI 62.5/125
Connector/Polishing Flat PC SPC AdPC Angled PC Flat PC SPC
FC O O O O O O O O
SC O O O O O O O O
DSC O O O O O O O O
ST O O O - - O O O
FDDI O O - - - O O O
LOCP O - - - - - - -
DL O - - - - O - -
Insertion Loss or Less (db) 1.0 or less 0.5 or less 0.5 or less 0.5 or less 0.5 or less 1.0 or less 0.3 or less 0.5 or less
Reflection Loss or more (db) (14 or more) 25 or more 40 or more 40 or more 60 or more (14 or more) 22 or more 35 or more
Note:For a cord tyoe with optical fibers, please contact our sales office.

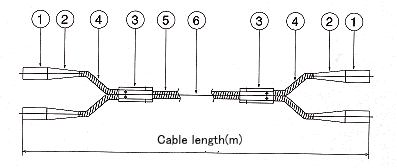

1)Optical Connector
2)Cord bush
3)Splitter
4)Branching tube
(PICOFLEC)
5)Main flexible tube
(PICOFLEC)
6)Optical Fiber
7)Protection Cap

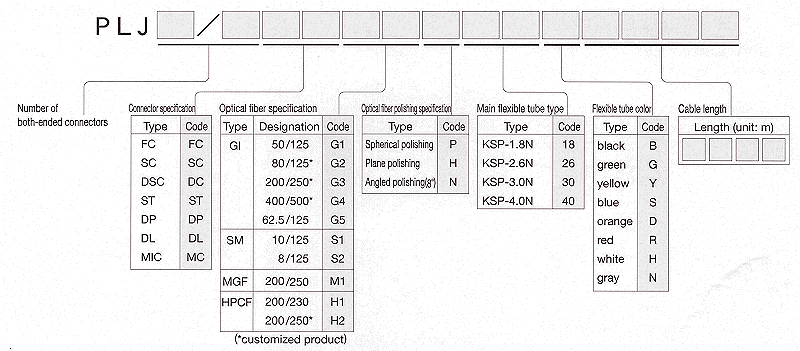

Standard Ordering Code
