Stainless Flexible Protection Tube & Connectors for Optic Fiber and other related materials and accsessories.
Saddle	P19
Features -Anchor for the Fiber Protection Tube(Holds down the End Cap and tube) Material -Polished steel plate Note 1.Taping for a thicker tube if the tube is too loose. 2.Select tube outer diameter size smaller than (A) in figure 21. 3.Available with a stainless steel saddle.
Size(mm) Model A B C D Matching tube Model A B C D Matching tube PZ0104 4 15.8 10 4.5 KS-2.2N KS-2.6N PZ0116 16 34.9 18 7.5 KS-13N PZ0106 6 17.8 10 4.5 KS-3N 3.2N KS-4N PZ 0118 18 41.4 20 9.0 KS-14N PZ0108 8 23.0 12 5.5 KS-5N KS-6N PZ 0120 20 43.4 20 9.0 KS-15N PZ0110 10 25.0 12 5.5 KS-7N KS-8N PZ 1122 22 66.0 25 9.0 - PZ0112 12 27.0 14 5.5 KS-9N PZ 1125 25 70.0 25 9.0 KS-22N PZ0114 14 32.7 16 5.5 KS-10 PZ 1128 28 78.0 30 10.0 - PZ0115 15 33.7 16 7.5 KS-11N PZ1130 30 80.0 30 10.0 KS-25N
Slotted Screw Driver
Feature For M2 screw Model D-M2
Hex Key Wrench
Feature For M2 Hex Head Leg Screw Model D6M2
Set Pin
Feature For fastened Sensor Head, End Cap and Panel Connector Material Raw Steel + Stainless Plating Note Screw size applied per the fiber protection Refer for connector chart, column F	Size(mm) Model Type of the tip Fig M2 X 1.5L - Straight slotted A M2 X 2L - Straight slotted B M2 X 2.5 Hex C M2 X 4L Hex C M3 X 3L Hex C Pack:50pcs

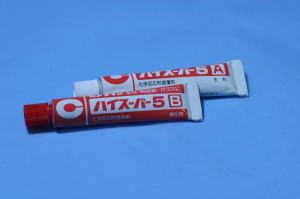

Adhesive
Feature Adhesive tube and connector Material Chemical equation type Material High super-5 Note 1.Apply adequate adhesive on to the tube and screw the connector in to the tube. 2.Allow at least 5 minutes for the glue to hard before using. 3.Does not adhere Polyethylene, Polypropylene, Nylon, Vinyl Chloride, Fluorocarbon and Rubber.

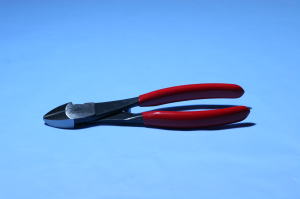

Fiber Protecotor Cutting Tool
Feature For Cutting tubes Model HG-175 Material Alloy steel Note 1.Hold the cutter 90 degree angle to the tube and cut the tube. 2.Position the cutter to tube so as to cut one pitch width (3 to 4mm). Trim the cut area with a radius as shown in fig.2
Fiber Protector Electric Cutting Tool
Feature -The tube is cut straight and neatly. -Maximum cutting diameter (Ø15.8mm) -Comes with 5 extra blades Model S-2
