HAGITEC
246-7 Dainichi, Yotsukaido-shi,Chiba-ken 284-0001 Japan. TEL:81+43-423-8741FAX:81+43-423-8684

Stainless Flexible Protection Tube & Connectors for Optic Fiber and other related materials and accsessories.
FLEXIBLE CONDUIT
CONNECTORS SMALL DIAMETER TUBE MEDICAL APPRICATION TUBE PIOCOLOOP

Amplifire connector
P18
Features
-The sensor head is completely protected to the amplifire unit.
(For the terminal fitting outer diameter 7.2(Ø) in sensor unit)
-Refective Type
-Transmission Type

Material
Nickel Plated on Brass

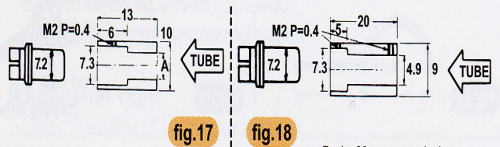

For Reflective Type
Pack:20pcs/pak [size:mm]
Model A Fitting Tube Fig.
KAB-3 - KS-3N.KS-3.2 18
KAB-4 5.9 KS-4N 17
KAB-5 7.3 KS-5N 17

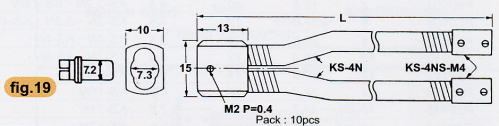

For Thrubeam type
Pack:10pcs/pak [size:mm]
Model Fig. Fitting Tube
KAWB-4 19 KS-4N

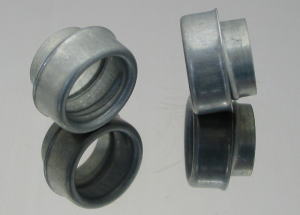

Insert/Adhension Type
P18
Features
-Tube tailing
-Mounted inside the tube for protection of the optical fiber and cable from damage

Material
-Electrolysis+Tin Plating
-KIN-6 is Stainless steel
-KIN-9 is Steel+Plating

Note
1.KIN-13 to 75 are available. Please contact with us for detail.(Material: Steel+Plating)
2.Can be used for KSP and other types.
-Cannnot be used with End Cap or Panel Connector.

Adhesion Type: Pack:50pcs[size:mm]
Model A OD/B C ID/D Matching tube Model A OD/B C IDD Matching tube
KIN-1.5 6.0 1.3 2.1 1.0 KS-1.5N KIN-4 12.0 3.9 4.7 3.5 KS-4N
KIN-1.8 6.0 1.7 2.5 1.4 KS-1.8N KIN-5 15.5 5.0 6.8 4.6 KS-5N
KIN-2.2 7.0 2.0 2.8 1.7 KS-2.2N KIN-6 10.0 5.9 8.2 5.3 KS-6N
KIN-2.6 10.6 2.6 3.8 2.2 KS-2.6N KIN-7 12.0 6.3 7.5 5.9 KS-7N
KIN-3.2 9.0 3.2 4.0 2.8 KS-3.2N KIN-8 20.0 7.9 10.6 7.3 KS-8N
KIN-9 20.0 9.5 11.8 8.5 KS-9N

Insert/Screw Type
Fastener screw used to secure the tube

Material
-SPC+Plating

Note
Please indicate the material type when you place the order.
Screw Type Pack:20pcs[size:mm]
Model D Matching tube
MAS-10IN 17.8 KS-10N KSP-10N
MAS-12N 20.3 KS-13N KSP-13N
MAS-16IN 23.6 KS-15N KSP-15N
MAS-22IN 29.0 KS-22N KSP-22N
MAS-28IN 35.7 KS-28N KSP-28
MAS-36IN 44.8 KS-36N KSP-36N

Type I: Panel Connector with Box Nut: Mas Connector
Feature
-Prevents tube falling off and slipping out (Use screw type for Insert & Holder)

Production Grade
-Over IP55F on Die Casing and Nylon


Materials
Die-Cast:
Zinc Die Cast 1 + Electro-Galvazing (45 degree angle connector is in Brass Only)
Plastic: 66 Nylon resin in Black

Note
-When using tube and casing type, make the outer diameter thicker by taping as shown below figure and align the polyethylene holder.
-For KSP, it will be waterproof and unnecessary for taping.
Straight Connector 45ĀčAngle Connector 90ĀčAngle connector Screw size É”A(mm) É”B(mm) Matching tube
Die cast 66 Nylon Brass 66 Nylon Die cast 66 Nylon
MAS-SG10Z MAS-SG10N MAS-HAG10 MAS-HAG10N MAS-AG10Z MAS-AG11N G16 20.9 15.2 KS-10N/KSP-10N
MAS-SG12Z MAS-SG12N MAS-HAG12 MAS-HAG12N MAS-AZ12Z MAS-AZ12N G16 20.9 17.7 KS-13N/KSP-13N
MAS-SG16Z MAS-SG16N MAS-HAG16 MAS-HAG16N MAS-AZ16Z MAS-AZ16N G16 20.9 21.0 KS-15N/KSP-15N
MAS-SG22Z MAS-SG22N MAS-HAG22 MAS-HAG22N MAS-AZ22Z MAS-AZ22N G22 26.4 26.5 KS-22N/KSP-22N
MAS-SG28Z MAS-SG28N MAS-HAG28 MAS-HAG28N MAS-AZ28Z MAS-AZ28N G28 33.2 33.0 KS-28N/KSP-28N
MAS-SG36Z MAS-SG36N MAS-HAG36 - MAS-AZ36Z MAS-AZ36N G36 41.9 42.0 KS-36N/KSP-36N

Type II: Panel Connector with Box Nut: Skin Top/Skin Top MS/Skin Top Spiral
Features
-Can be fastened with Fiber Protectors in a panel
-For KSP, it will be completely waterproof.(Waterproof grade: IP-68)

Material
Plastic or Metal

Note
Please select the tube outer diameter size for fitting into the clamp.
Please contact us for product details and sizes.
