P.530

246-7 Dainichi, Yotsukaido-shi,Chiba-ken 284-0001 Japan. TEL:81+43-423-8741FAX:81+43-423-8684
Stainless Flexible Protection Tube & Connectors for Optic Fiber and other related materials and accsessories.

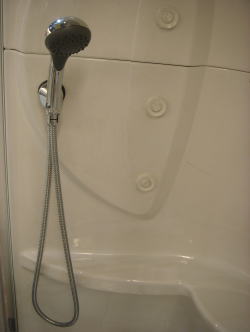

Flexible Tube for Shower Hose Cover	P.12
Features -As a hose cover for shower and pullout kitchen faucets and others. -Outstanding durability against pulling repetetion. Specifications This product made of -Flattened semi-interlocking design for an unlocked structure -Thin, light weight material. -Smooth surface for noise reduction -High flexibility for easy manipulation -Chemically polished for clean looks. -Can be manufactured as a unit of inner tube, joint connectors and shower hose cover. Material -Stainless steel Structures -Semi-interlocking casing tube. Specifications and sizes(mm) Model ID(mm) OD(mm) Bending radius(mm) SASH-14 11.8±0.2mm 14±0.1 40 SASH-16 11.3+0.2 to 0.1mm 16+0.1 to 0.2 40

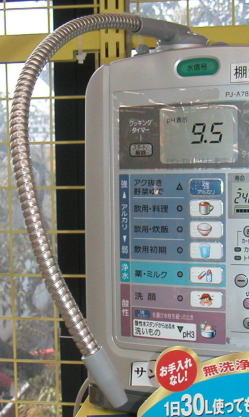

Delivery Hose (Outlet Tube)	P.12
Features -No leakage by cotton thread inside of the braided stainless interlocking tube. -Maintains bending formations -Direction of the spout is easily changed -Can be cut to required lengths and burrs will be removed. -Can be supplied tube only or with terminal nozzle and connector(box nut/cap nut)as a unit. Apprications -Gas Water Heater -Water purifire -Spout in water treatment equipment Materials -Stainless Steel
Specifications and sizes(mm) Model ID±0.2(mm) OD±0.2(mm) Bending Radius(mm) ISDH-10.5 8.0 10.5 40-60 ISDH-12.5 10.0 12.5 40-60 ISDH-13.5 11.0 13.5 40-60
