Decavon Tube |
P.10 |
Features
-Maintains bending forms

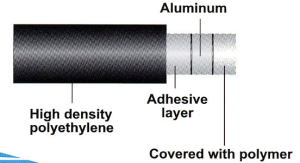

-Aluminum pipe in the core, covered with high-density polyethylene.
-Light weight tube bends smoothly
-Holds small bending radius
-Suitable for protection of cables and various accessories that require
holding a shape and mounting.
-As a delivery pipe for air, it has an individual joint that makes it easier
for piping and connecting to the housing.
Apprications

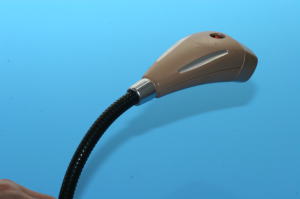

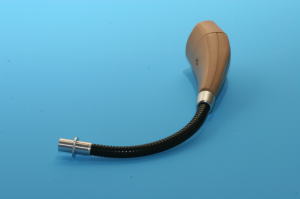

-Microphone holder in headset.
-LED, Lightweight light guides
-Fixed regulator tube for Oxygen inhalator.
Terms for usage
-Fluid:Air tube
-Range of temperature:-40C to +60C
-Connector:Special joint, Quick Seal for Decavon Tube.
(Do not use any other joints and connectors)
-Negative pressure capability: Flatten at negative pressure but will not
be deformed.
|


 |
Specifications and sizes(mm)
Model |
ID(mm) |
OD(mm) |
Max applicable pressure (Mpa at 20℃) |
Min Bending radius(mm) |
Weight(g/m) |
1300-6 |
4.0 |
6.0 |
1.0 |
20 |
21 |
1300-10 |
6.8 |
10.0 |
1.0 |
40 |
47.0 |
Length: 20m, 100m
Standard color: Black |
Straight Connector /Specifications and sizes
Model |
Applicable Decavon tube |
T Screw size |
L
(mm) |
A
(mm) |
F Tube insertion
length(mm) |
H1 Dual surface width
(mm) |
H2 Dual surface width
(mm) |
S
(mm) |
d1
(mm) |
d2
(mm) |
Weight
(g) |
DC6-PT1/8 |
1300-6 |
R1/8 |
28.0 |
11.0 |
15.0 |
10.0 |
12.0 |
4.5 |
5.0 |
2.7 |
14.5 |
DC6-PT1/4 |
1300-6 |
R1/4 |
30.0 |
12.0 |
15.0 |
14.0 |
12.0 |
4.5 |
7.0 |
2.7 |
22.0 |
DC10-PT1/8 |
1300-10 |
R1/8 |
30.0 |
11.0 |
18.0 |
17.0 |
17.0 |
4.5 |
5.0 |
5.6 |
28.0 |
DC10-PT1/4 |
1300-10 |
R1/4 |
31.0 |
12.0 |
18.0 |
17.0 |
17.0 |
4.5 |
7.0 |
5.6 |
32.0 |
DC10-PT3/8
|
1300-10 |
R3/8 |
32.0 |
13.0 |
18.0 |
17.0 |
17.0 |
4.5 |
9.0 |
5.6 |
38.0 |
|
90 Angle Connector /Specifications and sizes

Model |
Applicable Decavon tube |
T Screw size |
L1
(mm) |
L2
(mm) |
L3
(mm) |
L4
(mm) |
A
(mm) |
F Tube insertion length
(mm) |
H1 Dual surface width
(mm) |
H2 Dual surface width
(mm) |
S
(mm) |
d1
(mm) |
d2
(mm) |
Weight
(g) |
DL6-PT1/8 |
1300-6 |
R1/8 |
20.5 |
18.5 |
26.0 |
25.5 |
11.0 |
15.0 |
10.0 |
12.0 |
4.5 |
5.0 |
2.7 |
21.0 |
DL6-PT1/4 |
1300-6 |
R1/4 |
23.0 |
22.0 |
30.0 |
29.0 |
12.0 |
15.0 |
12.0 |
12.0 |
4.5 |
7.0 |
2.7 |
31.0 |
DL10-PT1/8 |
1300-10 |
R1/8 |
27.0 |
22.0 |
35.0 |
32.0 |
11.0 |
18.0 |
14.0 |
17.0 |
4.5 |
5.0 |
5.6 |
42.0 |
DL10-PT1/4 |
1300-10 |
R1/4 |
27.0 |
25.0 |
35.0 |
35.0 |
12.0 |
18.0 |
14.0 |
17.0 |
4.5 |
7.0 |
5.6 |
50.0 |
DL10-PT3/8 |
1300-10 |
R3/8 |
27.0 |
26.0 |
35.0 |
36.0 |
13.0 |
18.0 |
14.0 |
17.0 |
4.5 |
9.0 |
5.6 |
53.0 |
|
Nut /Specifications and sizes |
Model |
Applicable Decavon tube |
T Screw size |
L(mm) |
H2(mm) |
Weight(g) |
N6 |
1300-6 |
M10x1 |
9.0 |
12.0 |
5.0 |
N10 |
1300-10 |
M15x1 |
10.0 |
17.0 |
9.0 |
|

|
|
Nylon /Specifications and sizes
Model |
Applicable Decavon tube |
L(mm) |
SN6 |
1300-6 |
11.0 |
SN10 |
1300-10 |
12.0 |
|
 |
